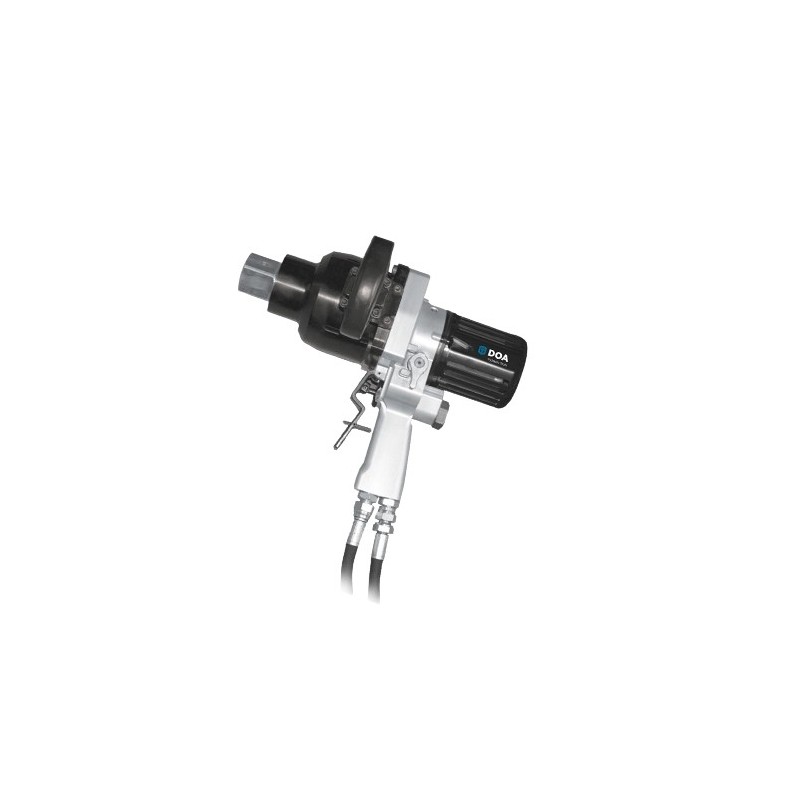

Impact wrench DHW MAX

DOA DHW 9512 / DHW 17012 - hydraulic impact wrench for extremely stressed connections

DOA DHW 9512 and DOA DHW 17012 are a powerful range of hydraulic impact wrenches designed for the toughest industrial, construction and service applications. They are designed for loosening and tightening large bolted joints where conventional electric or pneumatic tools are not sufficient.

Thanks to their hydraulic drive, they deliver high torque without the need for a compressed air supply. This is a major advantage in cold environments, in the field, on construction sites, in mines, in oil & gas operations or in the maintenance of railway infrastructure. Both models are also available in an underwater version for professional diving and installation work underwater.

Main advantages

• Extreme torque: up to 9500 Nm on the DHW 9512 and up to 17,000 Nm on the DHW 17012.
• 11" square: robust clamping for large sockets and heavy industrial connections.
• Adjustable torque control: suitable for working with highly stressed bolts and nuts.
• 3-part impact mechanism: a reliable solution for heavy duty and long term work.
• Hand switching direction of rotation: quick alternation between loosening and tightening.
• Heat dissipating motor cover: increased durability under heavy use.
• Ergal handle: lightweight, strong and durable construction suitable for harsh environments.
• Ergonomic handle with integrated oil flow: better maneuverability and safer operation.
• Mechanical lever with safety lock: reduces the risk of accidental lowering.
• Underwater version available: suitable for underwater installation, shipyards and professional diver work.

Appropriate use

• heavy construction and industrial operations,
• railway maintenance and infrastructure,
• oil & gas applications,
• mining and mining operations,
• shipyards and structural assembly,
• service of large flanges, anchor connections and heavy bolted assemblies,
• cold working environments without available compressed air,
• professional underwater work in special version.

Model variants

• DHW 9512: a powerful variant with a maximum torque of 9500 Nm, 11" square and M24-M56 bolt range. Suitable for heavy industrial connections, infrastructure and service work.
• DHW 17012: the most powerful variant with a maximum torque of 17,000 Nm, 11" square and M30-M80 bolt range. Designed for extremely stressed connections, large flanges, heavy structures and the most demanding assembly applications.

Technical Specifications

• DHW 9512: weight 13.6 kg, 11" square, M24-M56 bolt range, max. 9500 Nm torque, idle speed 1350 rpm, oil flow 20-30 l/min, length 363 mm, axle-side distance 60 mm.
• DHW 17012: weight 22.7 kg, square 11", bolt range M30-M80, max. 17,000 Nm torque, idle speed 1200 rpm, oil flow 20-30 l/min, length 496 mm, axle-to-side distance 88.7 mm.

The DOA DHW 9512 and DOA DHW 17012 hydraulic impact wrenches are the ideal choice for professionals who need extreme performance, reliability and safe handling in the most demanding conditions. Their rugged construction, high torque and availability in underwater versions make them suitable for industrial, infrastructure, mining, oil & gas and professional diving applications.
